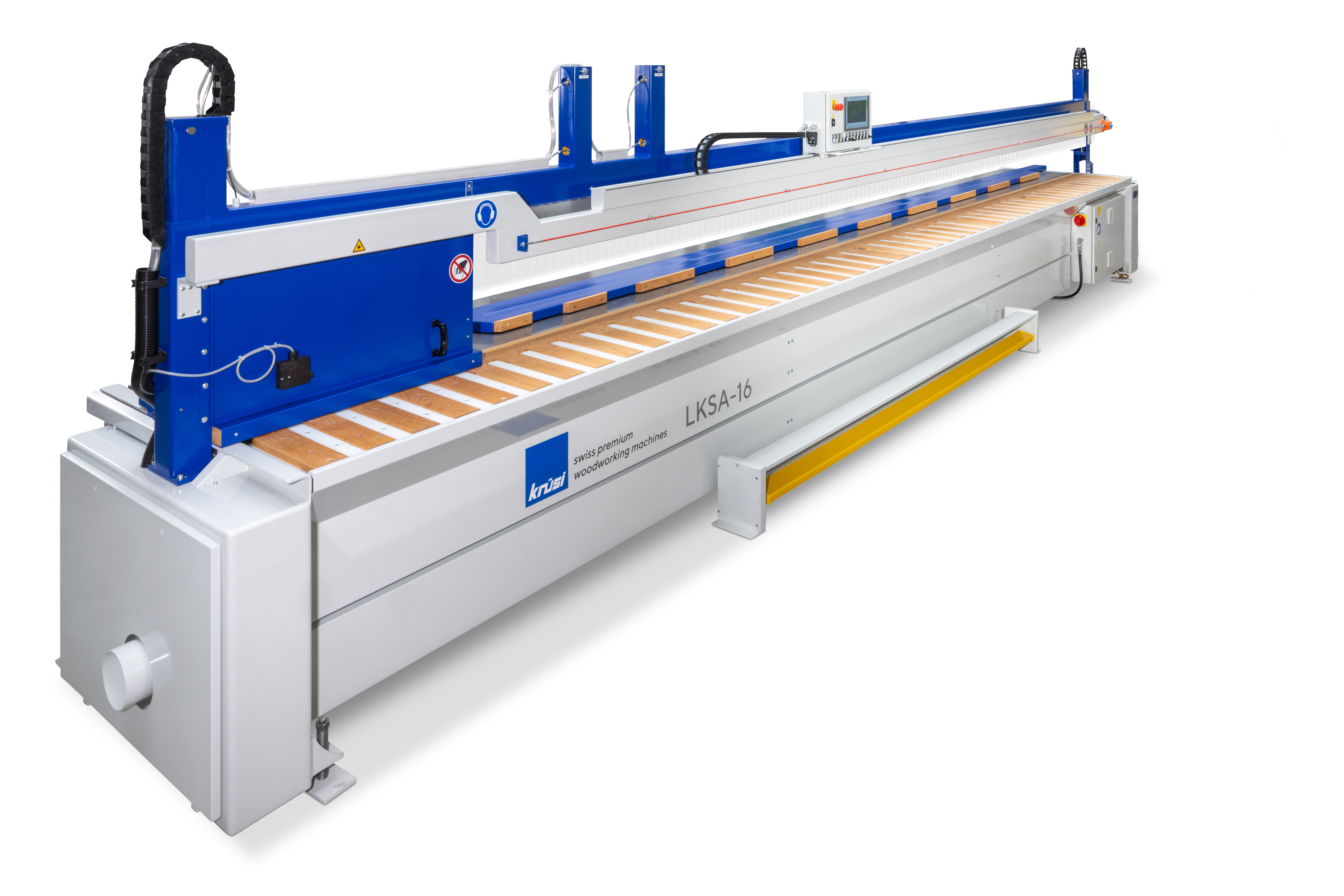

Automatic cutting and trimming
circular saw LKSA-16

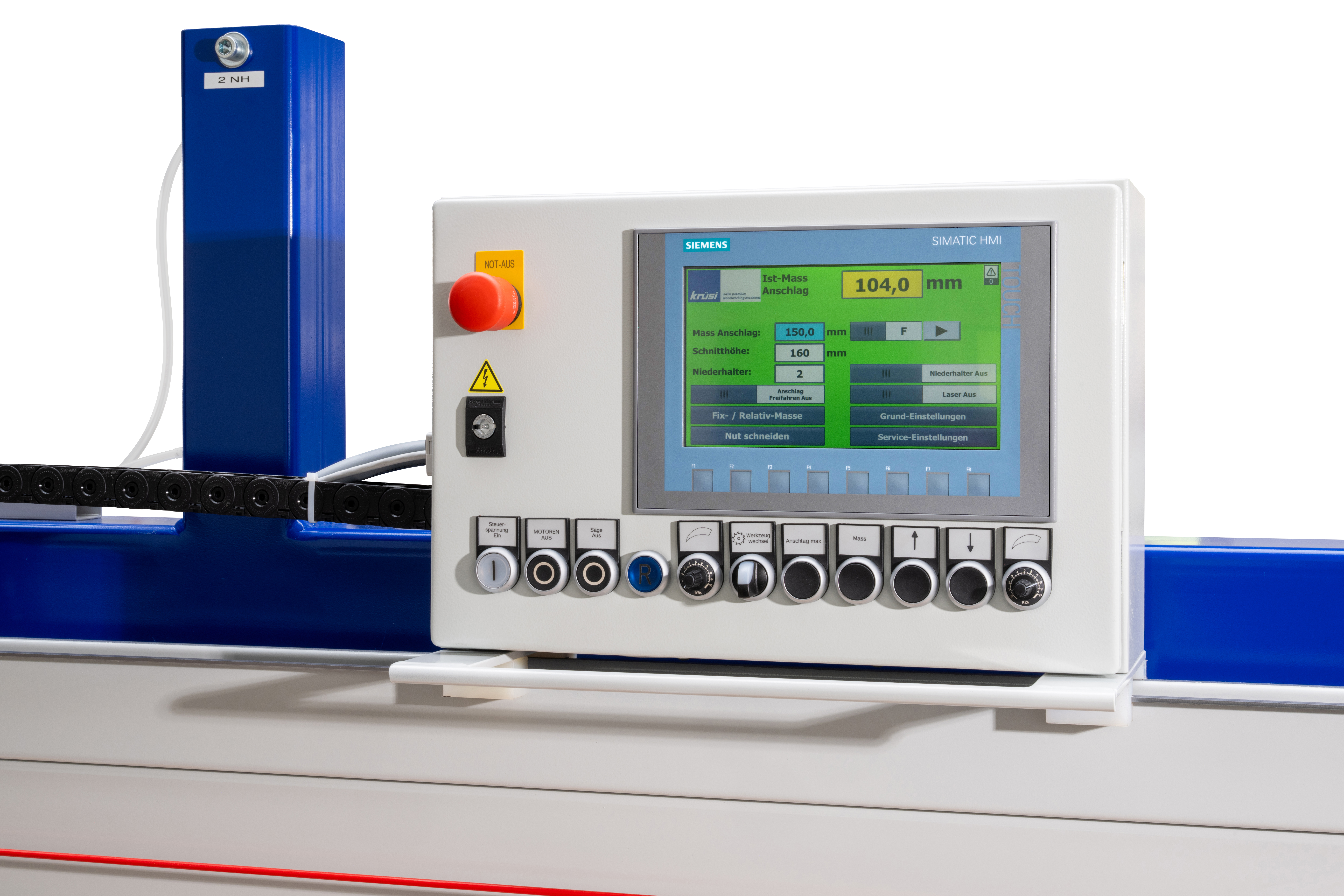

Efficient cutting of all types of wood, aluminium, plastic and insulation material. Equipped with a PLC-controlled operating panel, all settings can be made via buttons or directly on the touch panel.
The feed speed can be continuously adjusted at any time using the rotary potentiometer, even during the sawing process. This enables optimum feed adjustment for your applications.
The control panel can be moved along the entire cutting length and is therefore always in view.
The desired cutting height can be set directly on the touchscreen.
The width stop can be adjusted in 6 different ways, including 40 relative or 40 fixed dimensions that can be saved and called up.
Equipment
Cutting length from 3,200 mm
Cutting height 0-160 mm standard, optionally up to 180 mm possible
Cutting width 400 mm standard, up to 2400 mm possible
Saw motor power 11 kw

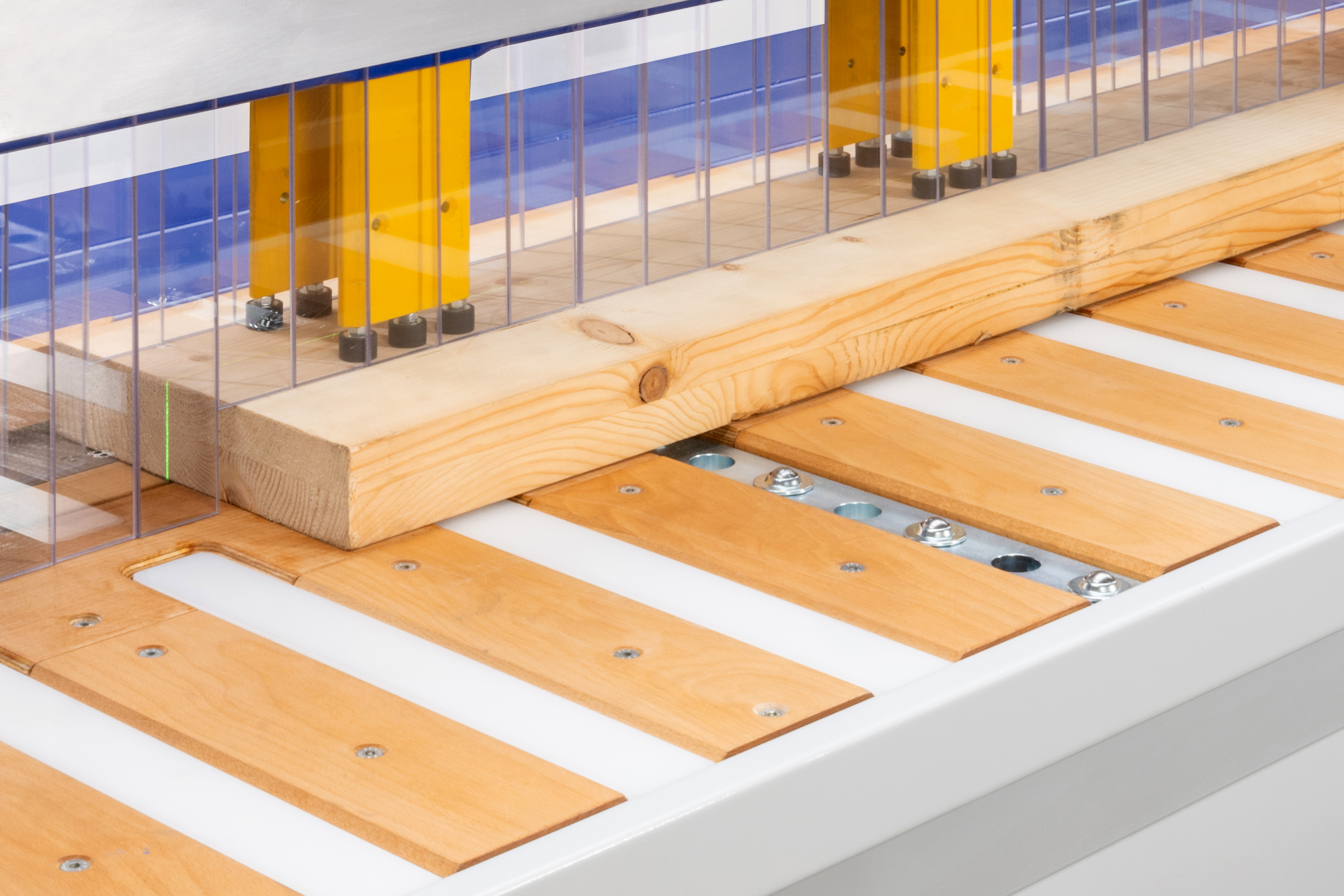

Standard equipment with 1 pneumatic hold-down device
Saw blade diameter max. 550 mm
Operating hours counter and job hours counter installed
